이진 트리 검색(Binary Tree Search)
루트 노드를 기준으로 왼쪽 서브 트리는 루트 노드보다 키 값이 작은 원소들로, 오른쪽 서브 트리는 루트 노드보다 키 값이 큰 원소들로 구성된 '이진 탐색 트리'를 사용하여 중위 순회 방법으로 검색.
삽입, 삭제 연산 후에는 항상 이진 탐색 트리를 재구성해야 한다.
예시 1) 20를 찾는 경우
9
/\
4 17
/\ /\
1 7 14 20
1. 루트 노드에서 검색을 시작하여 키 값과 비교한다. 키 값이 루트 노드보다 크기 때문에 오른쪽 노드로 이동한다.
9
/\
4 17
/\ /\
1 7 14 20
2. 이동한 오른쪽 노드와 키 값을 비교한다. 키 값이 17보다 크기 때문에 오른쪽 노드로 이동한다.
9
/\
4 17
/\ /\
1 7 14 20
3. 이동한 오른쪽 노드와 키 값을 비교한다. 키 값과 일치하기 때문에 검색을 종료한다..
9
/\
4 17
/\ /\
1 7 14 20
예시 2) 6을 찾는 경우
9
/\
4 17
/\ /\
1 7 14 20
1. 루트 노드에서 검색을 시작하여 키 값과 비교한다. 키 값이 루트 노드보다 작기 때문에 왼쪽 노드로 이동한다.
9
/\
4 17
/\ /\
1 7 14 20
2. 이동한 왼쪽 노드와 키 값을 비교한다. 키 값이 4보다 크기 때문에 오른쪽 노드로 이동한다.
9
/\
4 17
/\ /\
1 7 14 20
3. 이동한 오른쪽 노드와 키 값을 비교한다. 키 값과 일치하지 않기 때문에 검색 실패로 검색을 종료한다.
프로그램 작성)
package test;
class TreeNode {
int data;
TreeNode left;
TreeNode right;
}
class BinarySearchTree {
public TreeNode root = null;
public TreeNode insertKey(TreeNode root, int x) {
TreeNode p = root;
TreeNode newNode = new TreeNode();
newNode.data = x;
newNode.left = null;
newNode.right = null;
if(p == null) {
return newNode;
} else if(newNode.data < p.data) {
p.left = insertKey(p.left, x);
return p;
} else if(newNode.data > p.data) {
p.right = insertKey(p.right, x);
return p;
} else {
return p;
}
}
public void insertBST(int x) {
root = insertKey(root, x);
}
public void inorder(TreeNode root) {
if(root != null) {
inorder(root.left);
System.out.print(" " + root.data);
inorder(root.right);
}
}
public void printBST() {
System.out.println("중위 순회 : ");
inorder(root);
}
public void search(TreeNode current, int key) {
if(current == null) {
System.out.println("찾는 값 없음.");
} else if(current.data > key) {
System.out.println("현재 값 : " + current.data + " > " + key);
search(current.left, key);
} else if(current.data < key) {
System.out.println("현재 값 : " + current.data + " < " + key);
search(current.right, key);
} else {
System.out.printf("찾은 값 : %d", key);
}
}
}
class Search {
BinarySearchTree bst = new BinarySearchTree();
public void binaryTreeSearch(int[] a, int key) {
for(int i=0; i<a.length; i++) {
bst.insertBST(a[i]);
}
bst.search(bst.root, key);
}
}
public class Test {
public static void main(String[] args) {
int[] a = {9, 4, 17, 14, 20, 1, 7};
System.out.println("배열 : ");
for(int i=0; i<a.length; i++) {
System.out.printf(" %d", a[i]);
}
System.out.println();
System.out.println();
Search s = new Search();
s.binaryTreeSearch(a, 20);
System.out.println();
System.out.println();
s.binaryTreeSearch(a, 6);
System.out.println();
}
}

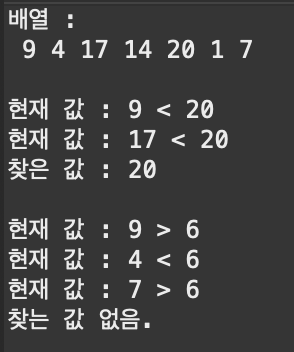

실행 결과)
